29" Carbon Mountain Bike Frame Set

29" Carbon Fiber Full Suspension Mountain Bike Frame Set

Designed to Race.

Today’s XC, marathon and stage race courses get more and more demanding; steeper, rougher, harder, punchier and clearly asking for the rule book of short travel race bikes to be re-written. On top of that, there is a growing group of riders who are looking for lightweight trail weapons that combine the climbing and sprinting ability of an XC race bike with a ‘trail-ability’ of a trail bike.

This full suspension frame has the ability to tackle today’s demanding XC and marathon courses. The hugely capable frame platform is the perfect basis for a fast and trail loving short travel full suspension machine.

If XC is your jam, then this full suspension frame is your weapon of choice!

SPECIFICATION

Type: 29" Boost Full Carbon MTB Frame

Headset: 44/56mm

Seat Tube: ID:31.6mm / OD: 34.9mm

BB: BSA73

Net Weight: 2000 +/- 50g

Dropout: Carbon

Size: S, M, L

HEADSET

Tapered Headtube (44/56mm)

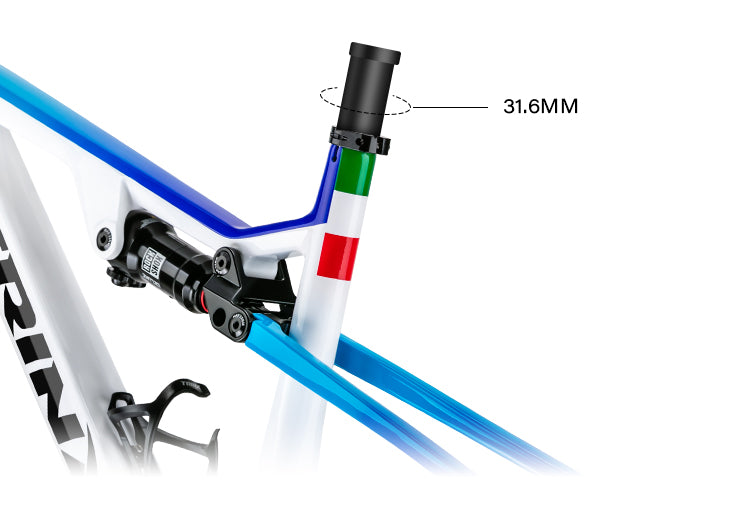

SEAT POST

31.6mm; Seat Post Clamp: 34.9mm

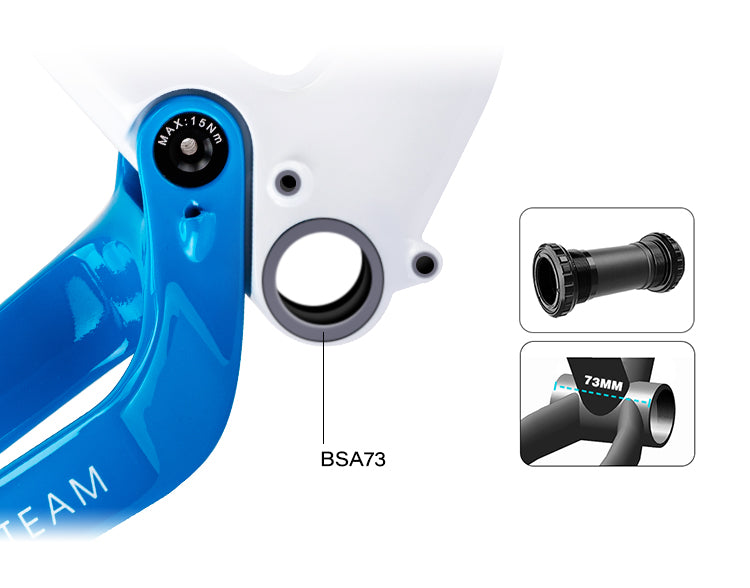

BOTTOM BRACKET

Threaded BSA73

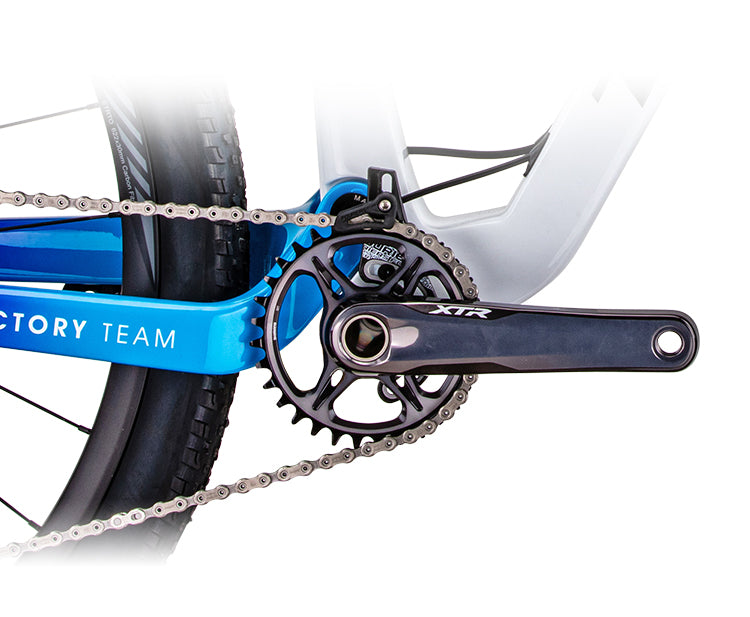

FRONT CHAINWHEEL

Compatible with 11/12 Speed Single Chainring up to 40T

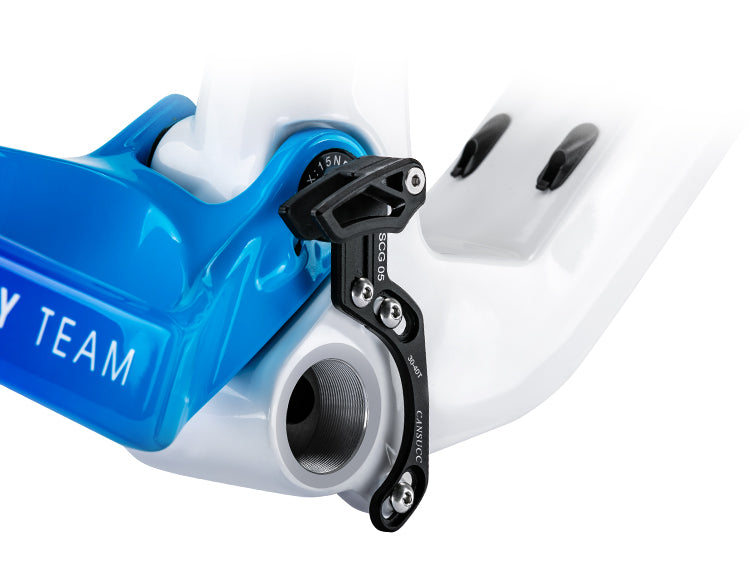

CHAIN GUIDE

Equipped with one ISCG05 Chain Guide

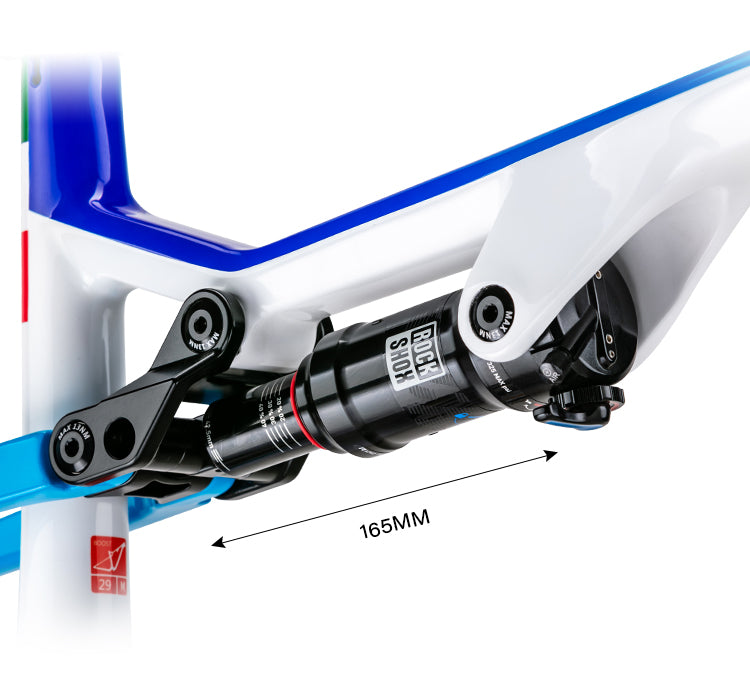

REAR SUSPENSION

Some frame option is equipped with RockShox Deluxe RL3 165x40mm trunnion rear suspension. This frame is also compatible with 165x42.5mm trunnion suspension, or 165x38mm rear suspension (need extra washers).

100MM / 110MM / 120MM FRONT WHEEL TRAVEL

110MM REAR WHEEL TRAVEL

MAXI WHEEL WIDTH

29” x 2.35”; 27.5” x 2.6”

INTERNAL CABLE ROUTING

The internal cable routing offers a clean appearance and a functional solution for all common standards. The routing is completely internal and designed for full length cables.

BOOST

The Boost standard improves wheel stiffness and provides greater tire clearance.

GEOMETRY

 SUPERFIT TABLE

Rides Like Customized

 APPLICATION

PACKAGE

Packing List:

1. Headset 44/56mm

2. Seat Post Clamp

3. Chain Guide ISCG 05

4. Chain Stay Protector

5. Frame Protector

6. Thru Axle 148mm

7. Bottle Cage

8. RockShox Deluxe RL3 165x40mm trunnion rear suspension. (for Frame + Rear Suspension Option)

 Two Packge Boxes: Inner Box + Outer Box

Products Related to This Item

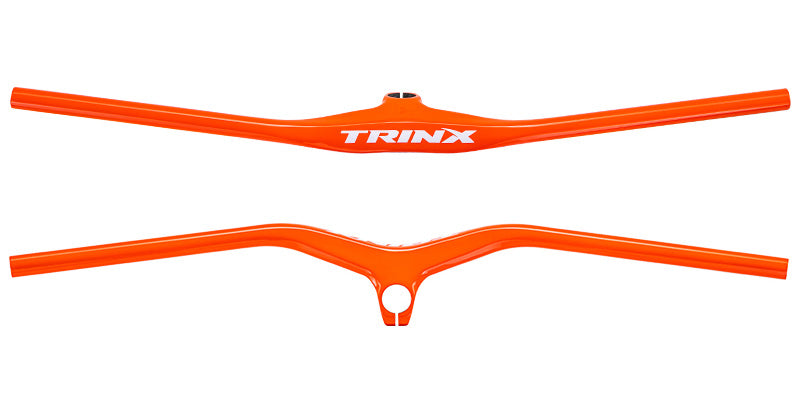

Mountain Bike Integrated Handlebar
